2. Table Voyage (X, Y, Z): 620x350x500 mm
3. Max. Tableau de la table: 300kgs

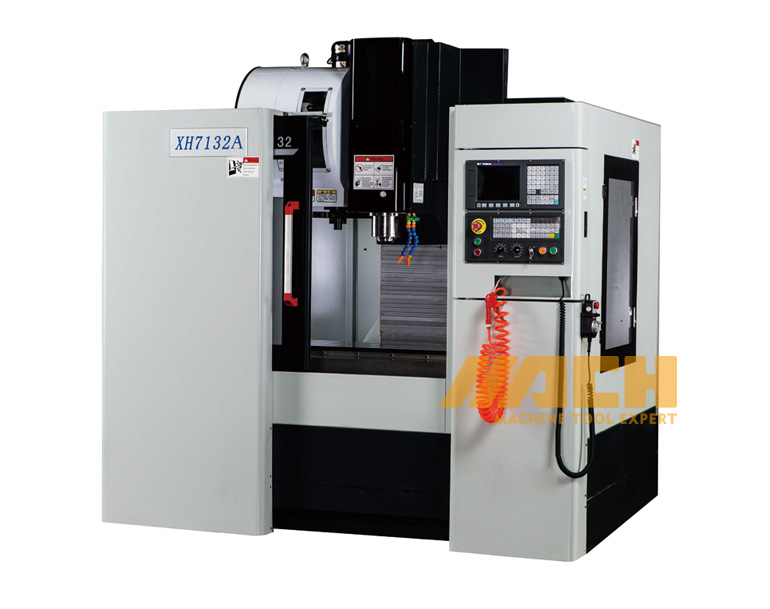

| spécification | unité | XH7132 |
| Table | MM | 920 × 320 |
| Tslot | Non | 3 |
| Centrédidien | MM | 85 |
| Largeur en T | MM | 14 |
| Max.loadofworkTable | kg | 300 |
| Travel longitudinal | MM | 620 |
| Croisement | MM | 350 |
| Verticaltravel | MM | 500 |
| SpindLenOsetotableSurface | MM | 100-600 |
| spidleaxistocolumnsurface | MM | 395 |
| Spindletaper | | BT40 |
| Speedra | RPM | 60-6000 |
| spindlemotorpower | kw | 5.5 (Servo) |
| CuttiingFeedX / Y / Z | mm / min | 2,5-3000 |
| RapidFeedX / Y / Z | m / min | 18 |
| Toolmagazinecapacité | morceau | 16 |
| toolmagazinetype | | type de tambour |
| Max.tooldiamètre | MM | Φ120 × 200 |
| Max. | MM | 250 |
| Max.toolweight | kg | 8 |
| ToolChangingtime | s | 7 |
| positionnement de la place | MM | ± 0,015 |
| positionnement de la place | MM | 0.0075 |
| aérien | MPA | 0.5 |
| Dimensions globales (LXWXH) | MM | 2100x1970x2170 |
| N / b | Kg | 2750 |
